Technical Parameters for Meta Aramid
| Meta Aramid Fiber
Meta Aramid Fiber Properties

Temperature

(ºC)

LOI

Melting Temperature

(ºC)

Moisture Regain

(% @20 ºC & 65% r. humidity)

Specific Density

(g/cm3)

Combustion Support
204 - 240 28 Decomposition @ 370 1 1.38 Yes
Chemical Resistance Alklais Mineral Acids Organic Acids Organic Solvents Oxidising Agents
Fair Very Good Excellent Very Good Good
* Relatively low resistance against strong acids and alkalines.
* Relatively low resistance to hydrolysis at high temperatures > 180 ºC.



Meta Aramid is a high temperature fibre, suitable up to 200°C in dry conditions; care is needed when used in moist environments at high temperatures as it is prone to hydrolysis which will chemically degrade the fibres turning them to powder resulting in failure of the filter medium.

The original fibre was known as Nomex from Du Pont though today a number of alternative fibres with the same basic chemistry are available so many applications simply specify "aramid". The fibre is self extinguishing with an LOI of around 30%.

.

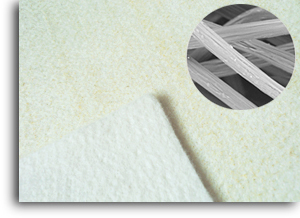

  Solitex® Meta Aramid Needle Felt
| Meta Aramid Needle Felt (500gsm)
Meta-Aramid Needle Felt
Layers / Scrim

Area Weight

(gsm)

Temperature

(ºC)

Thickness

(mm)

Air Permeability

(L/dm2.min @200Pa)

Strength at Break

(N/5 * 20cm)

Elongation

(@ 50N/5cm, %)

Max. Shrinkage

(250ºC, 90mins)

Meta Aramid 500 204 - 240 2.1 180 800TD / 1,100MD 2%TD / 2%MD 1.5%TD / 1.5%MD
Finishings Availbale Singeing, calendering, heat setting, water & oil repellency, anti-static, PTFE impregnation, PTFE membrane lamination.
*

The data are based on the properties of virgin fiber under laboratory conditions. The information does not express or imply any guarantee and Pangin Environmental reserves the right for modification without notice.


* The data are based on area weight of 500gsm, for more specifications, please contact our sales engineers for detailed parameters.
I Typical Applications:
Typical Applications for Meta Aramid:

  • Cement
  • Quarry
  • Smelting
  • Asphalt
  • Lime
  • Steel
  • Chemicals
  • Gypsum
  • And more...
  •
    For more industry applications please contact our sales engineers for further information.
