Technical Parameters for PAN (Homo-Acrylic)
| PAN Fiber
PAN Fiber Properties

Temperature

(ºC)

LOI

Melting Temperature

(ºC)

Moisture Regain

(% @20 ºC & 65% r. humidity)

Specific Density

(g/cm3)

Combustion Support
123 - 140 18 Decomposition @ 320 1 1.38 Yes
Chemical Resistance Alklais Mineral Acids Organic Acids Organic Solvents Oxidising Agents
Fair Very Good Excellent Very Good Good
* PAN Can be effected by strong acids at elevated temperatures .
* Can be effected by strong alkalines.



Acrylic normally refers to homopolymer products in this industry, but there are small amounts of copolymer used where the conditions are less arduous and price is an important consideration.

It is a medium temperature fibre, up to 120°C continuous, and has good chemical resistance as its structure imparts resistance to hydrolysis. It is a fibre with quite a low strength so care is need in mechanically stressed systems. This weakness is increasingly being tackled by mixing the fibre with polyester to produce a compromise needlefelt.

.

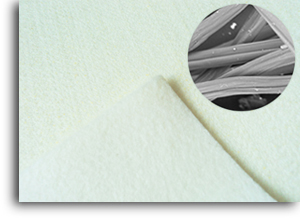

  Solitex® PAN Needle Felt
| PAN Needle Felt (500gsm)
PAN Needle Felt
Layers / Scrim

Area Weight

(gsm)

Temperature

(ºC)

Thickness

(mm)

Air Permeability

(L/dm2.min @200Pa)

Strength at Break

(N/5 * 20cm)

Elongation

(@ 50N/5cm, %)

Max. Shrinkage

(140ºC, 90mins, %)

PAN 500 123 - 140 2.2 160 600TD / 700MD 2%TD / 2%MD 1.5%TD / 1.5%MD
Finishings Availbale Singeing, calendering, heat setting, water & oil repellency, anti-static, PTFE membrane lamination.
*

The data are based on the properties of virgin fiber under laboratory conditions. The information does not express or imply any guarantee and Pangin Environmental reserves the right for modification without notice.


* The data are based on area weight of 500gsm, for more specifications, please contact our sales engineers for detailed parameters.
I Typical Applications:
Typical Applications for PAN:

  • Cement
  • Limestone
  • Smelting
  • Asphalt
  • Incineration
  • Power generation
  • And more...
  •
    For more industry applications please contact our sales engineers for further information.
